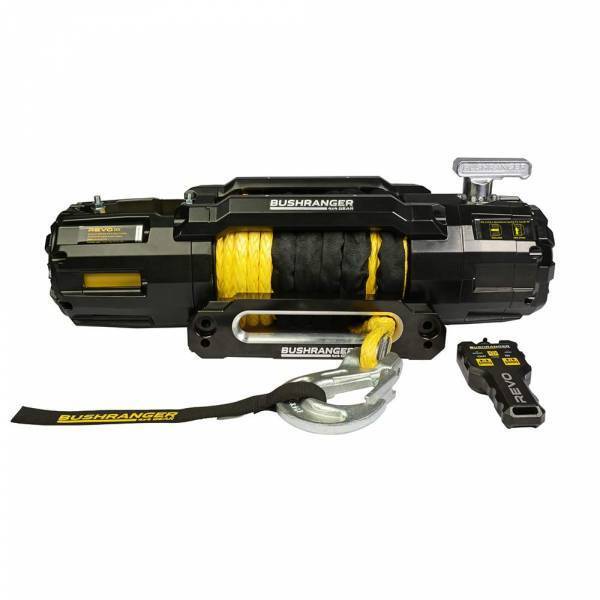

Bushranger Revo Winch 12,000lb | Synthetic
SKU code: RWR120S
REVO winches are designed to be strong, versatile, and ready for anything.
Tested in Australia, for Australia. With over 12 years of winching history and 40+ years’ experience in the Australian 4×4 market. Bushranger REVO winches are made to be tough and reliable. Extensively engineered, tested for maximum endurance, and backed by our limited lifetime warranty, REVO is up to the challenge.
Designed to tackle any challenge, the REVO 10S is packed with tough and reliable features.
- 10mm premium synthetic rope paired with a ½” removable clevis hook.
- 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 clockable positions making for ease of fitment.
- Gearbox mounted braking system 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
- In-line hawse fairlead made from lightweight aircraft-grade aluminium. Engineered with an innovative two position design allowing for greater flexibility when installing.
- Series wound, 12V, 6.2HP motor made with high grade materials. Resulting in low current draw and longer life at extreme loads.
- Spring loaded clutch making for an easy to use no-lift style clutch mechanism
- Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle free installation
- Wireless hand controller fully sealed, IP67 rated, with a 433MHz receiver mounted internally in the control box.
- Zero drag braking system allowing for the winch to be powered out under no load without heat build-up, making unspooling a breeze
- Dimensions: 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
- Rated Line Pull (single): 12,000lbs (5,443kg)
- Motor: Series wound, 12V, 6.2HP (4.6kw)
- Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
- Electrical: Contactor IP67 500A
- Gear Train: 4 stage gear driven
- Gear Ratio: 171:1
- Clutch (freespooling): Rotating Ring Gear
- Brake: Gearbox Mounted, Proportional Friction Brake System
- Drum Diameter/Length: 63.5mm x 244mm
- Mounting: Bolt Pattern 254mm x 114mm
- Rope: 11mm x 24m Synthetic Rope
- Fairlead: Two position Aluminium Hawse Fairlead
- Recommend Battery: 650CCA minimum
- Battery Leads: 1850mm
- Finish: Black Powder Coat
- Mechanical Warranty: Limited Lifetime
- Electrical Warranty: 7 years
- Waterproof Rating: IP67
- Certification: CE, IP67
- Winch Weight: 35kg
| SKU | RWR120S |
| Barcode # | 9322046500889 |
| Brand | Bushranger |
