Using a Hardkorr battery box with voltage-sensitive relay (VSR) is the simplest way to create a dual battery setup in your vehicle.

The VSR acts as an isolator, allowing the auxiliary battery (inside the box) to charge directly from the crank battery while the alternator is producing at least 13.2V (i.e. the engine is running). When the ignition is switched off and battery voltage drops below 12.7V, the VSR automatically cuts the link between the auxiliary and crank batteries to prevent the crank battery from being discharged.

The optional dual battery wiring kit makes it an easy DIY job to install your dual battery setup.

This Voltage-Sensitive Relay can also be used in 12v setups without a Hardkorr battery box.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 2 Year Australian warranty.

Features

  • Easy retrofit into Hardkorr battery boxes
  • Fully automatic operation
  • Inbuilt surge protection

Electrical Specifications

  • Voltage: 12V DC
  • Current Rating: 50A
  • Cut-In Voltage: 13.2V
  • Cut-Out Voltage: 12.8V
  • Standby Draw: 10mA
  • Delay: 15 seconds
  • Terminal Type: M6

Physical Specifications

  • Weight: 0.2kg

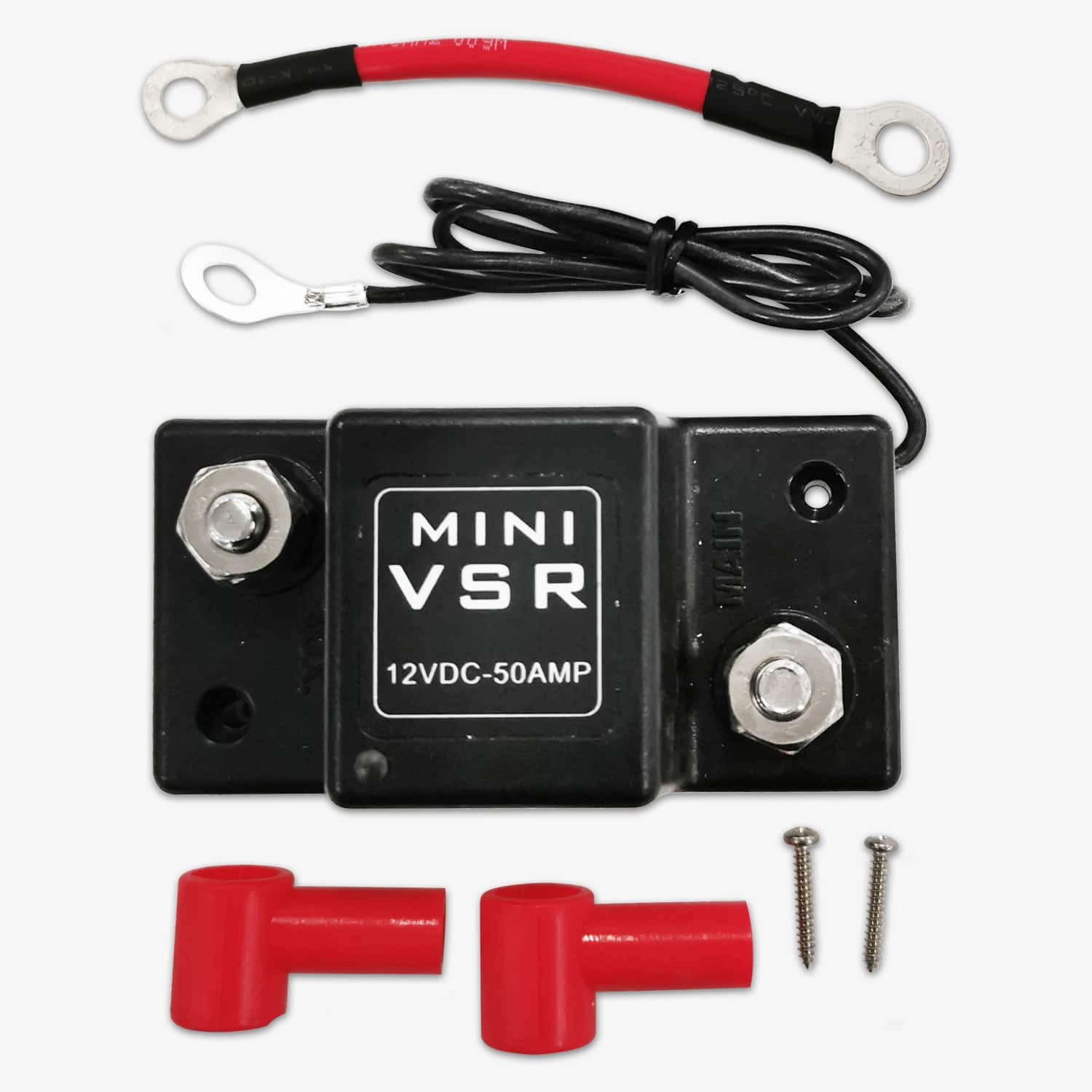

Pack Contents

  • 1x 50A voltage-sensitive relay
  • 1x Cable with ring terminal ends
  • 2x Terminal covers
  • 2x Mounting screws
SKU HKPBATTVSR
Barcode # 9350466001624
Brand HardKorr
