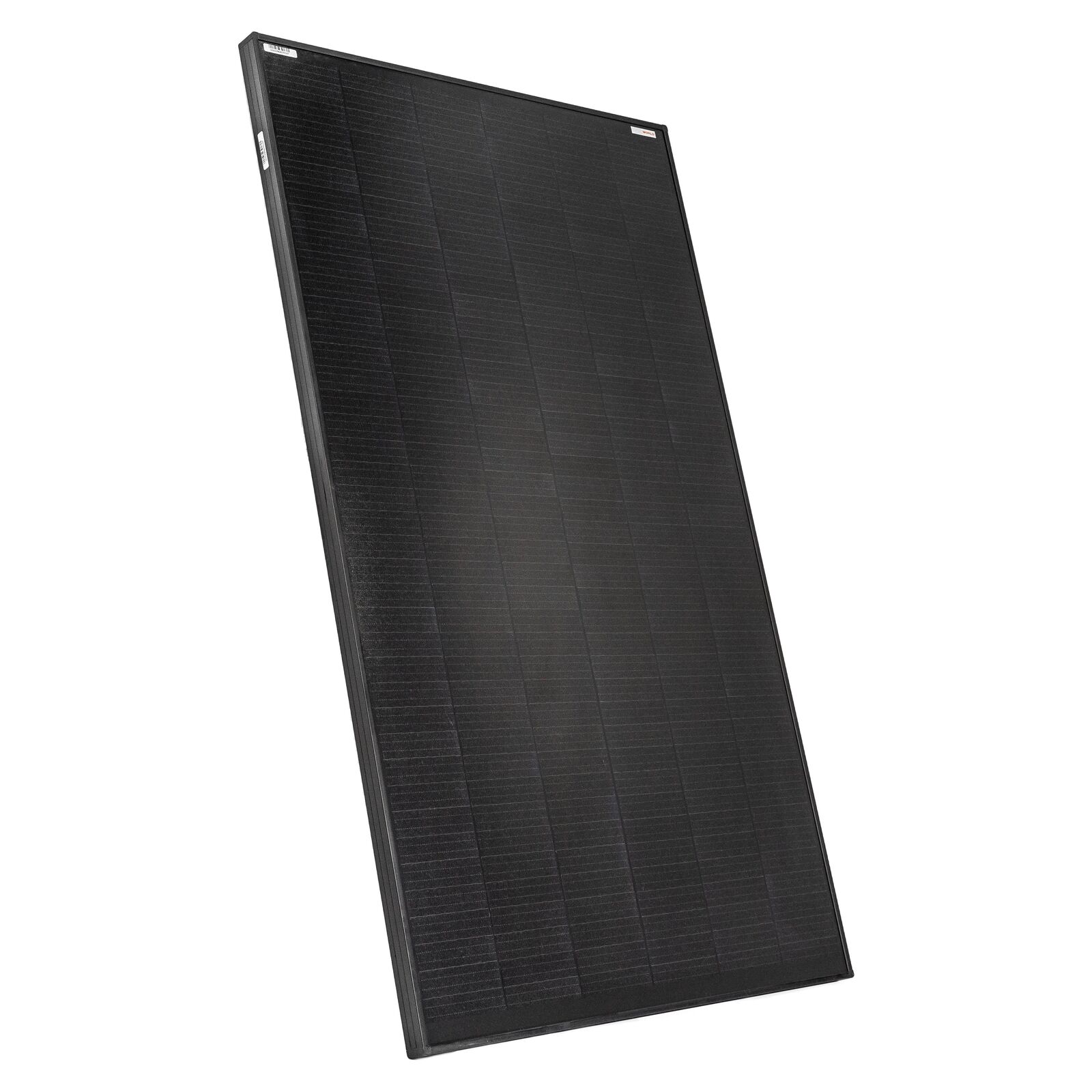

iTechWorld's all-new 42V HIGH VOLTAGE 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising Shingle Solar Cells, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics.

Specifications

  • Rated Maximum Power (Pm): 150W
  • Tolerance: ±3%
  • Voltage at Pmax (Vmp): 36.56V
  • Current at Pmax (Imp): 4.1A
  • Open-Circuit Voltage (Voc): 42V
  • Short-Circuit Current (Isc): 4.36A
  • Normal Operating Cell Temp (NOCT): 45±2°C
  • Maximum System Voltage: 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Operating Temperature: -40°C to +85°C
  • Weight: 9.32KG
  • Dimensions (mm): 1160x670x30mm

*This 42V Solar Panel will not work with our DCDC chargers as the solar input is a max of 32V.

SKU ITW-SP150HV
Brand iTechWorld
